Shoring

Scales Used:
For Shoring: 1:10
For Details: 1:50
All dimensions in MM.


Shoring:
The term 'shoring' is applied to construction of the temporary structure required to support an unsafe structure.
The types of shoring:

• Raking Shoring-This is a system of giving temporary supprt to an unsafe wall. The construction of  raking shore, also known as Inclined Shore, varies with conditions of the site. In all cases, Wall plate is 23cm X 5cm to 23cm X 7.6cm.

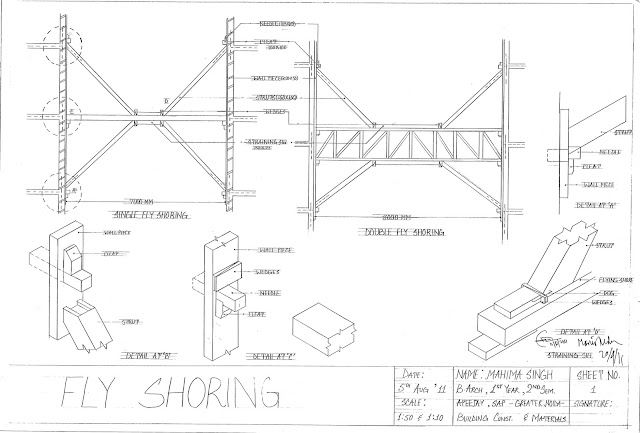

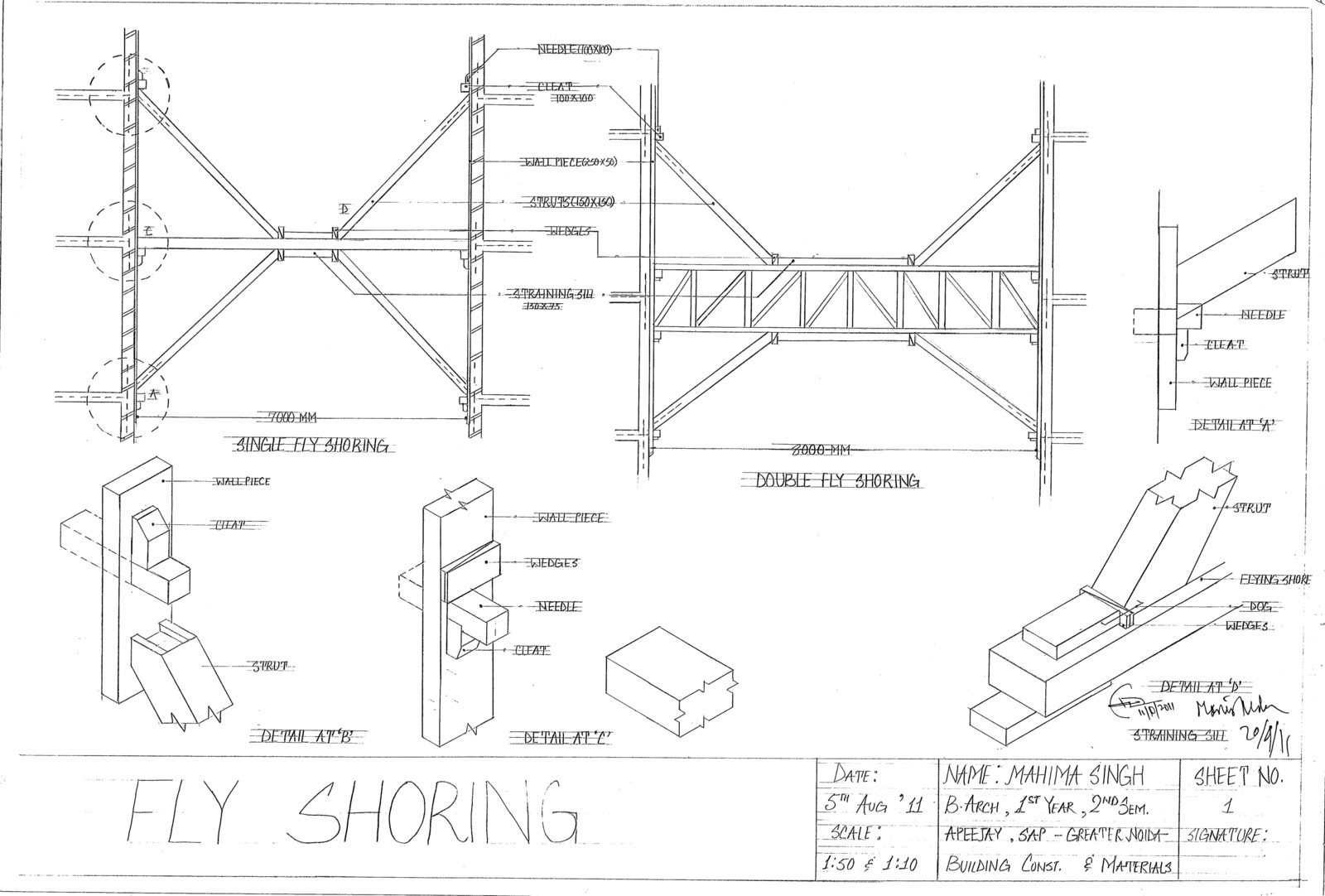

• Flying Shoring- Its a system of providing temporary support to the parting walls of two buildings where the intermediate building is to be pulled down and rebuilt. It consists of wall plates, needles, cleats, horizontal struts etc.

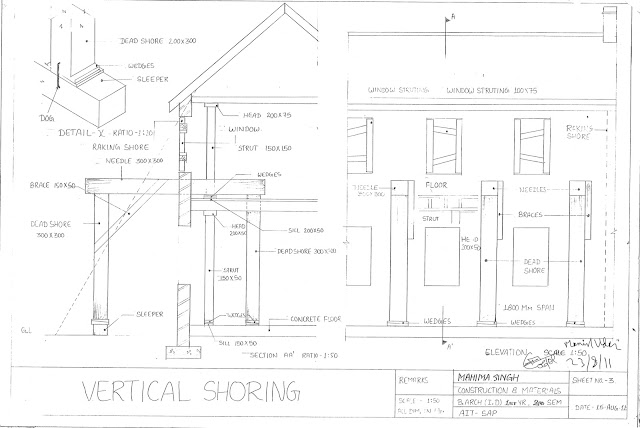

• Vertical or Dead Shoring- This is the system of shoring which is used to render vertical support to walls and roofs, floors etc., When the lower part of  a building has to be removed for the purpose of providing an opening in a wall or to rebuild a defective load bearing wall in a structure.
